EXTRA EQUIPMENT

RB-TT - Turntable for welding robot

The turntable is a well-functioning add-on for the RBCobot welding robot. The turntable allows you to rotate workpieces for greater flexibility when welding round workpieces. You can also get an upgraded version with manual tilting, which significantly increases flexibility. Read more on this page.

Do you need a complete welding robot with an integrated rotary table? Then don't hesitate to get in touch with us. We can offer expert advice to ensure you get the right solution for your production.

Turntable ny-3

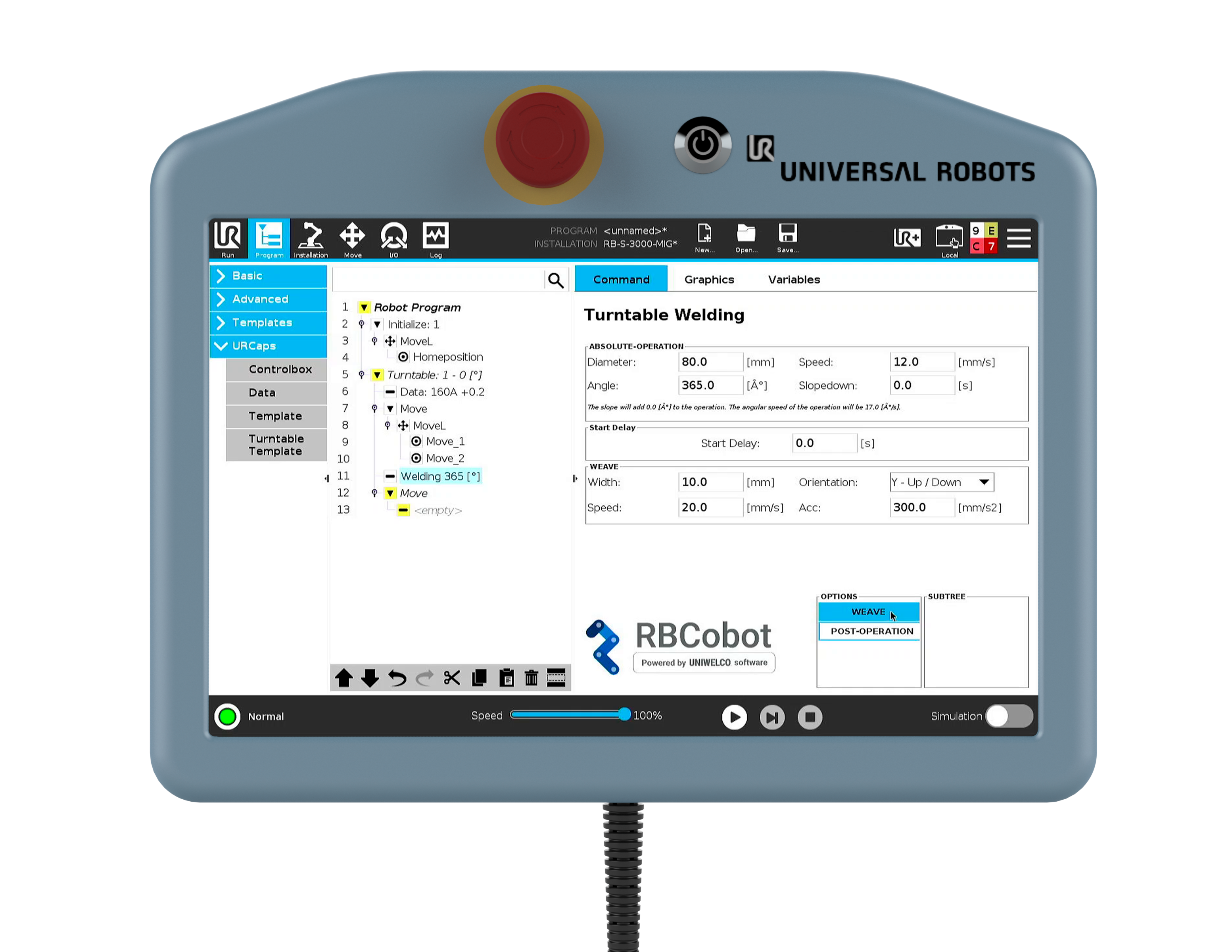

Uniwelco URCap Teach pendant turntable
ABOUT THE TURNTABLE

Fully controlled with URCap

The turntable is designed with ease of use as a top priority. This means that the turntable integrates seamlessly with the rest of the interface you already know.

In addition, the turntable is:

  • CE-marked in collaboration with Maskinsikkerhed ApS.
  • Suitable as a manipulator for turning workpieces.
  • Based on stepper motor with mechanical absolute encoder.
  • With or without Ø30mm center holethrough the entire rotary table, which allows for the passage of workpieces and back gas.

Turntable with or without tilt

The turntable is available in several variants. The most common configuration has a fixed angle, but now the turntable is also available with a manual tilt. The tilt allows you to tilt the turntable, giving you much more flexibility to weld exactly the parts you need.

Tilting turnt table mounted on welding table for Uniwelco RBCobot welding robot
Tilting turnt table mounted on welding table for Uniwelco RBCobot welding robot

Can be included in UR+ certified welding solution

UR _Certified_Logo (1)

The RBCobot turntable integrates seamlessly with the UR+ certified welding robot. Read more about the certification and what it means for you here.

Read more about it
Tilting turnt table mounted on welding table for Uniwelco RBCobot welding robot

Greater efficiency

With a Uniwelco rotary table, you can achieve greater efficiency in pipe welding.

Easy installation

The turntable easily integrates with the welding robot to create the right kit for your production.

Integration with URCap

The turntable variables can be controlled directly from our URCap, so you only need to control the process from one place.

Product specifications

Load capacity

The tilt turntable can be loaded 50 kg vertically or 200 kg vertically.

Rotation

Turntable can rotate 600°

Speed of rotation

Turntables can rotate at different speeds.

Tailstock for the rotary table

The turntable can also be expanded with a tailstock as shown. This is also available with or without a hole for rear gas. This allows you to fix the workpieces without the need for lifting.

See how Gromas uses the turntable in their production

Gromas has implemented a rotary table in their welding robot. This means that they can easily rotate the workpiece and reach all the way around it without having to do anything else. Therefore, they get maximum potential out of the robot. Watch the video below.

Details about the turntable

Weight:

The turntable weighs from 35 kg.

Load:

Up to 10 kg.

Magnetic brake:

Holds the item during a service disruption.

Frame connection:

Rotating earth clamp for 400A.

How much does the solution cost?

The price is available on request.

Contact us and let us find a solution for you

Learn more about the welding robot

What is included in the RBCobot price and what options are available for additional equipment? Get the overview below.

GO TO RBCOBOT

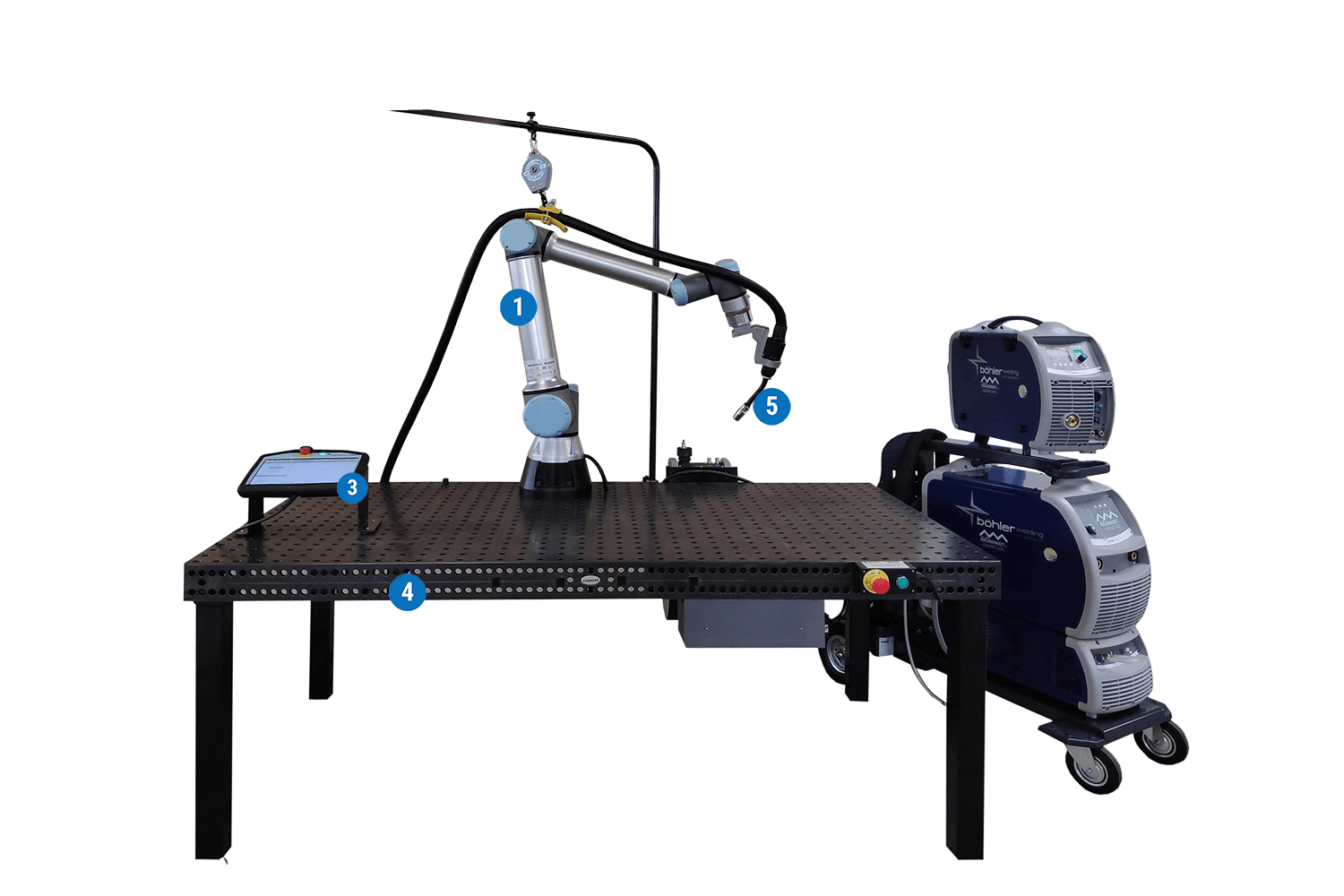

MIG MAG Setup new with numbers
