A COLLABORATIVE WELDING ROBOT

What is an RBCobot?

RBCobot is a welding robot that you can program for every welding assignment. We offer RBCobots for either MIG/MAG or TIG welding. RBCobot is a so-called collaborative robot - a cobot - that does not require any extensive safety measures.

The welding robot RBCobot is designed with focus on usability meaning that only a minimum of instruction is needed for you to design your own welding programme that RBCobot executes.

LET'S HAVE A CHAT ABOUT THE POSSIBILITIES
The welding robot RBCobot welding with a TIG-torch

Small amounts

Atomization of small production

Large amounts

Possibility to produce large amounts of workpieces in uniform quality

Perfect control of arc

50 percent faster compared to a manual welding process

Easy to programme

Userfriendly software ensures simple and quick programming

UNIQUE SOFTWARE AND SOLID WELDING SKILLS

What does an RBCobot consist of?

RBCobot consists of a robotic arm, a welding machine, user-friendly software and a welding table. Because of RBCobots high safety standards there is no need for protective shields. Have a look at the MIG/MAG or TIG setup below.

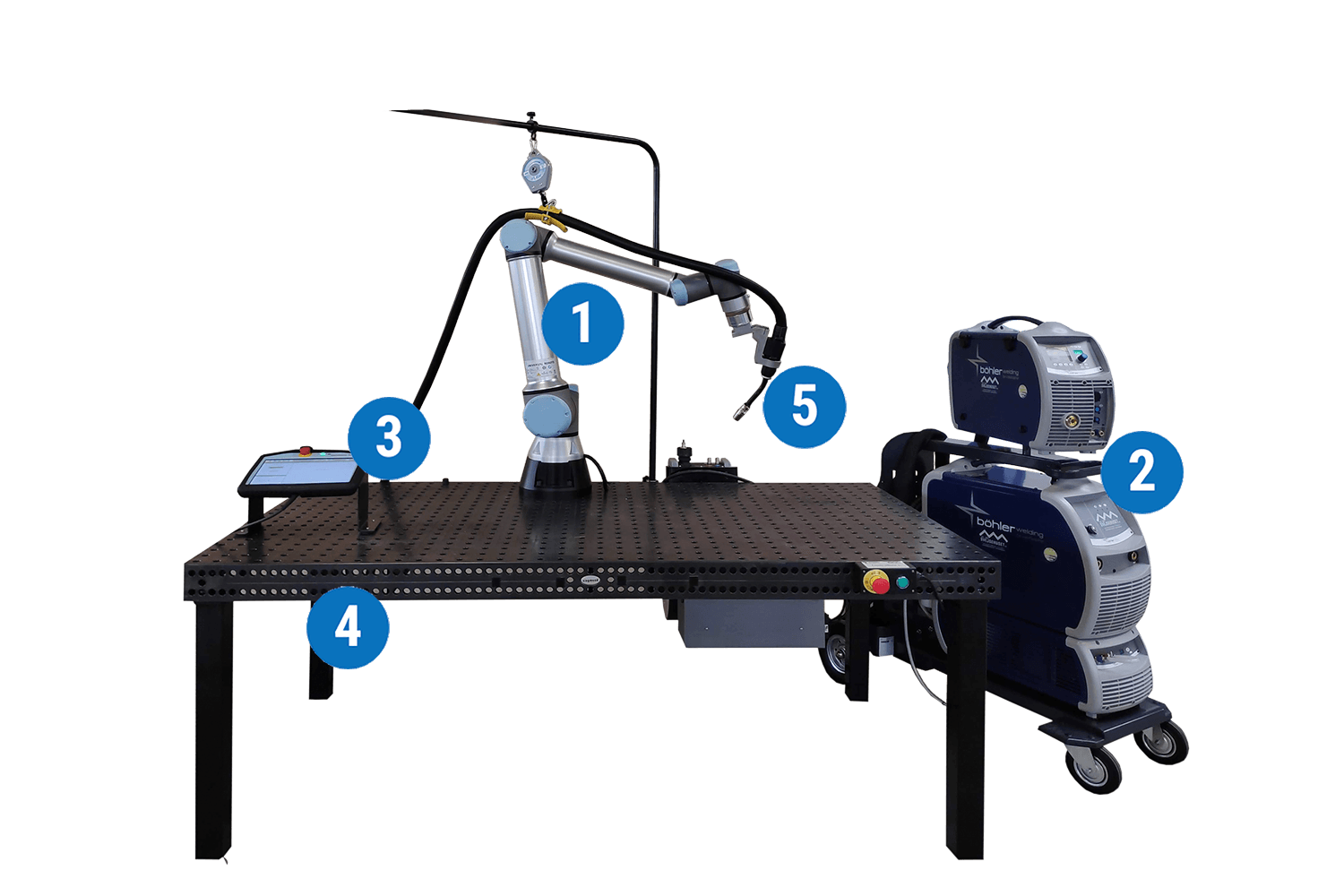

Welding robot MIG MAG Setup

MIG/MAG

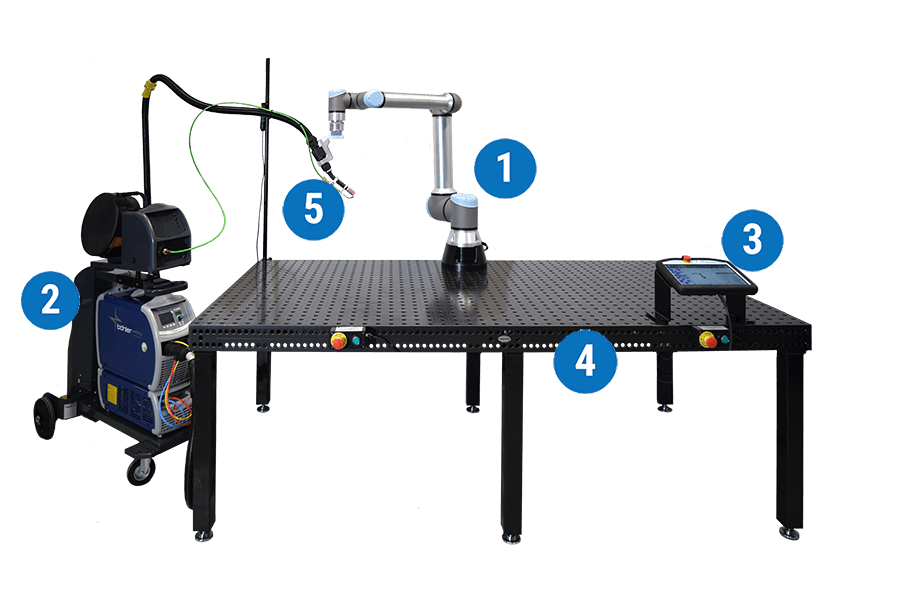

Welding robot TIG Setup

TIG

1 fritlagt

UR robotic arm

The robotic arm is a collaborative robotic arm from Universal Robots, who are known for their high user-friendliness. The multiple axes in the robotic arm ensure fast and precise change of position, as well as a uniform welding, every time.

READ MORE
2 fritlagt

Welding machine

An RBCobot is always delivered with a welding machine from Böhler. Click below to see the selection of welding machines.

READ MORE
3 fritlagt

URCap: Unique software

The URCap for RBCobot functions like an app for a smartphone. The graphic and intuitive user interface makes programming easy - even without prior experience.

READ MORE
4 fritlsagt

Welding table

An RBCobot is always mounted with a professional welding table, which makes for easy fixation and optimal placement of items. The welding table is tailored for your specific needs.

READ MORE
5 fritlagt

Torchhead

RBCobots are also equipped with a torchhead;  METZ eller TETZ. RBCobot is also delivered with a watercooled hose-package with waypoint and confirmation button from Dinse.

READ MORE
UNIFORM WELDING RESULTS OF HIGH QUALITY

High quality of welding - MIG/MAG or TIG

RBCobot makes is possible to increase capacity and hereby produce more orders. RBCobot delivers high welding quality and equal results and increases the effective welding productivity rate by up to 60%.

CHANGES DURING ESABLISHED ARC

Perfect arc control

  • It is possible to switch job or A, synergic line, as well as Pulse or double pulse in the robot program, all directly from URCap.
INCREASED WELDING ACTIVITY

Up to 60% increased effective welding time

  • Optimized active arc time compared to traditional processes
OPTIMAL REPETITIONS

High accuracy

  • Accuracy of repetition of 0.05 mm
  • Decreases subsequent processing of the workpieces
  • Uniform every time
OUR SOFTWARE MAKES IT EASY FOR YOU

An RBCobot is easy to use

We have developed a unique welding programme which makes your setup of the cobot fast and easy. The URCap controls both the robotic arm and the welding machine. You just need to choose your welding parameters and allocate a few points and then RBCobot takes care of the rest.

Universal Robots URCap on teach pendant for RBCobot

RBCobot is controlled by our proprietary URCap, which reduces time spend programming.

Confirmation button

Confirmation button to easily identify welding points on the workpieces

Waypoint button

Positions are saved easily and by the press of a button

Welding items

The welding programs are easily saved and retrieved later for easy setup

Automatic search function

The search function automatically finds the right distance to the workpiece

Welding features

Weaving, stich welding, vertically ascending etc.

More equipment for RBCobot

In addition to the parts that are always delivered together with RBCobot it is possible to buy more equipment if needed. The extras below are for both MIG/MAG and TIG welding processes.

Loop icon

Turntable

  • Fully integrated with our proprietary URCap
  • Turns and welds simultaneously
  • Can also be used as a manipulator to turn the item
READ MORE

Tablet icon

Protection for the teachpendant

Chock absorbing cover, as well as a 0.2 mm. screen protector for the URCap.

READ MORE

Box icon

Wear parts

Includes all wear parts for the torchhead as well as technical drawings for easy reorder.

READ MORE

Checkmark icon

Extra warranty

RBCobot always includes 1 year of warranty. In addition to this it is possible to buy extended warranty on the robotic arm.

READ MORE



ALL IN ONE SOLUTION  We are happy to help with all interior needed in your welding space. If you have any requirements to welding equipment that is not listed on this page please contact us and we will provide all necessities in order to create an all-in-one solution for your company.

Do you want to know more?

We are always ready for a chat about your company's possibilities of an optimised welding process.
